Product Description
● Long service life: More than 6000 cycles at 100% charging and discharging. More than 8 years lifecycle.

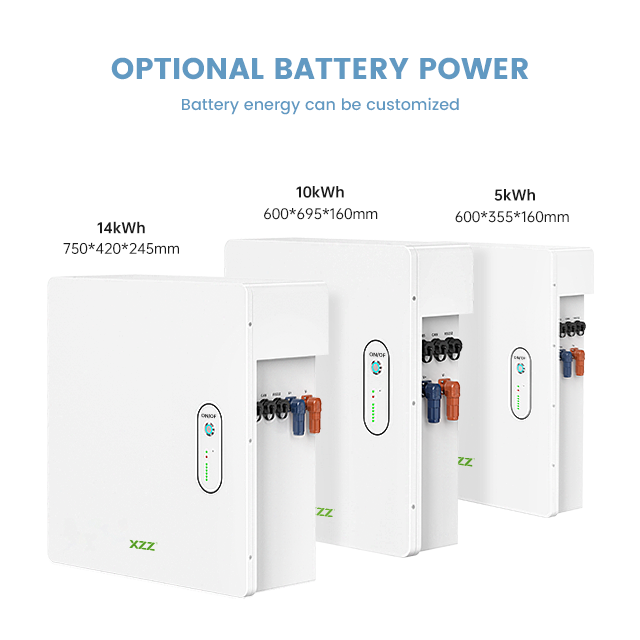

● Standard module design: Battery modules can be stacked according to load conditions,Optional capacities 5KWh,10KWh.15KWh, and 20KWh.
● Installation method: Stacked installiation, Free combination, Two buckles on the left and right sides for easily installation and transportion.
● Safety: BMS protection, Inverter protection, Circuit breaker protection,Ground protection.
● Communication: Supports the communication protocols of 90% of brand inverters on the market.
● System design based on LFP batteries, which have greater thermal stability.
● Quick insert design to save installation time and cost.
● IP65 water- and dust-proof, supports both indoor and outdoor installation.
● The battery has high usage with usable energy up to 100%.
Product Specifications

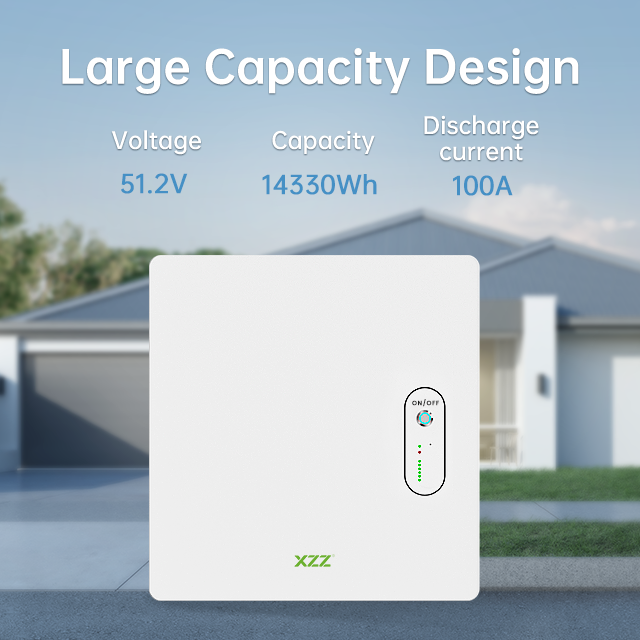

| Capacity | 14330Wh | ||
| Battery Type | LiFePO4 | ||
| Voltage | 51.2V | ||
| Currrent | 100A | ||
| DoD | 0.9 | ||
| Altitude | ≤2000m | ||
| Storage Humidity | 5%～95% | ||
| Operation Voltage | 44V～58.4V | ||
| Charge Voltage | 52.5V～59.4V | ||
| Charge/Discharge Current | 100A | ||
| Peak Charge/Discharge Current | 115A(Peak@10s)/130A(Peak@1s) | ||
| Network Interface | RS485/Can | ||
| Lifespan | 8+Year (20℃) | ||
| Life Cycle (Times) | >6000(25℃) | ||
| Storage Time | 6 Moths Power Off | ||
| Altitude | ≤2000m | ||
| Operating Temperature | 0℃～50℃ | ||
| Discharge Temperature | 0℃～50℃ | ||
| Charge Temperature | 0℃～50℃ | ||
| Storage Temperature | -10℃～55℃ | ||
| Dimension.D*W*H(mm) | 750*420*245mm | ||
| Net Weight(kgs) | 101kg |

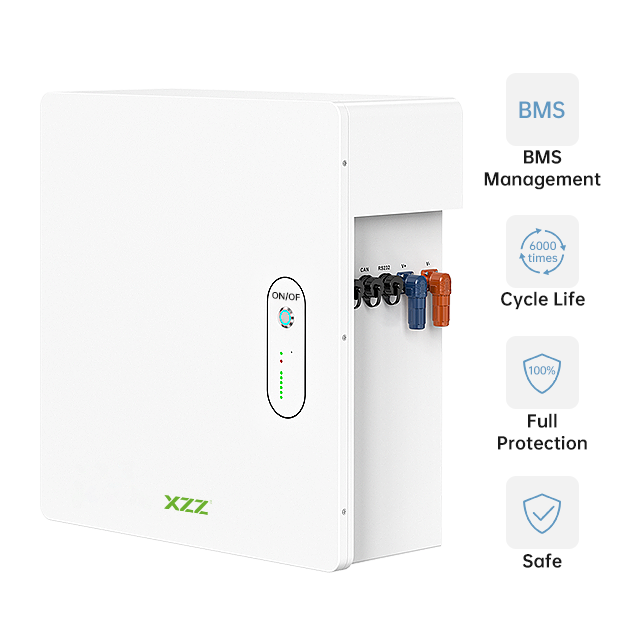

Product Advantages
Long service life
Stack-based
Multiple Protections
Communication
Product Display
Why Choose Us
FAQ
1.Q:How long is the delivery time of your products?
A:We can ship in 3 days if ship from oversea warehouse.
2.Q:What kind of certificates your solar generator power station products have?
A:Solar generator power station products have acquired UN38.3, CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
3.Q:Can you ship your battery products by sea or by air ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
4.Q:Can you supply solar panels? Can you recommend?
A:Yes, we have solar panels, we can recommend you suitable solar panels.
5.Q:Can I customize battery products?
A: Let me know the specific customization requirements and I will get back to you as soon as possible.
6.Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.
7.Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
8.Q:Who are we?
A: We are based in Guangdong, China, start from 2013,sell to North America(60.00%),Domestic Market(15.00%),Western Europe(10.00%),South America(8.00%),Oceania(3.00%),Africa(2.00%),Eastern Europe(2.00%). There are total about 301- 500 people in our office.
9.Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
10.Q:What can you buy from us?
A:Our main products include portable power station, home energy storage system,EV charger,car jumper starter,solar panel and other related energy products.
11.Q:Why should you buy from us not from other suppliers?
A:Own 200,000 square meters battery cell production industrial Jump Starter 7 years experience for OEM and ODM Patent new battery cell technology and QDSP jump starter 30 people R&D team,all product are private mould 200,000pcs capacity per month.
12.Q:What services can we provide?
A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japan.
