Featured a sleek and easy-to-install design with a variety of color options
to seamlessly complement diverse home styles.
Savings on Electricity
Bills
Allowing smart charging with solar energy，
it optimize electricity use with dynamic
load management, reducing costs and enhancing
power savings.
01.Easy/Convenient
● Max. 3.5kg Light Weight
● 10mins Quick Installation
● Wall-mount/Pole-mount(Optional)
● Type 2 Cable/Socket
● Connectivity： Wi-Fi/4G/Ethernet/Bluetooth
● Cable Length: 4m/7m(Optional)
● Start Mode: Plug&Play, RFID Card, App
● Rated Power： 10kW/12kW
03.Safety
● IP65 Ingress Protection
● IK10 Impact Protection
● High Cyber Security Protection
● Muliti Electrical Protection

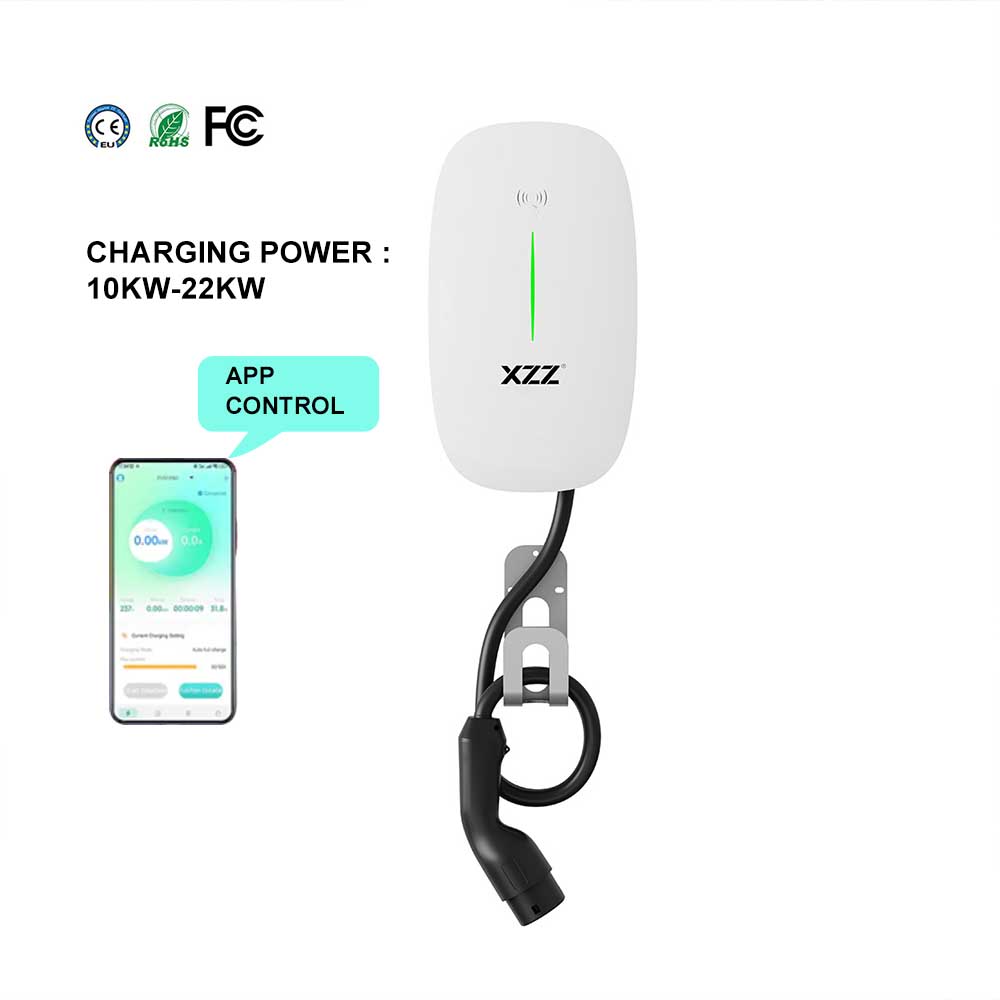

04.Smart Charging
● Schduled Charging
● Dynamic Load Management
● Site Map Charger Finding
● Charger Authorisation
● White Label Service
● Color Customized Service
● ODM Service
● OEM Service
● 0 emission PV charging
● Simple integration with PV systems
● Adjustable current for optimized PV usage
● Saving from electricity bills

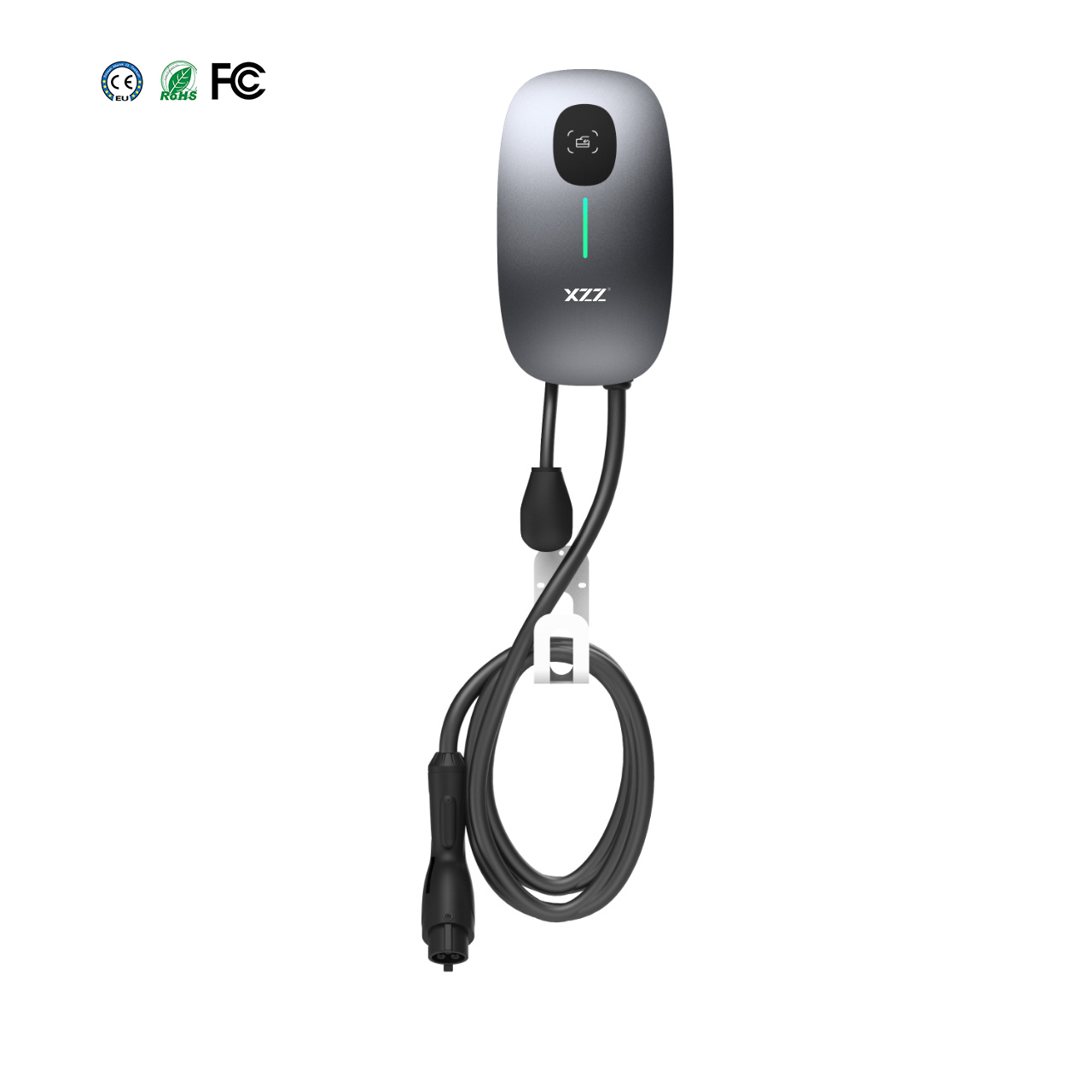

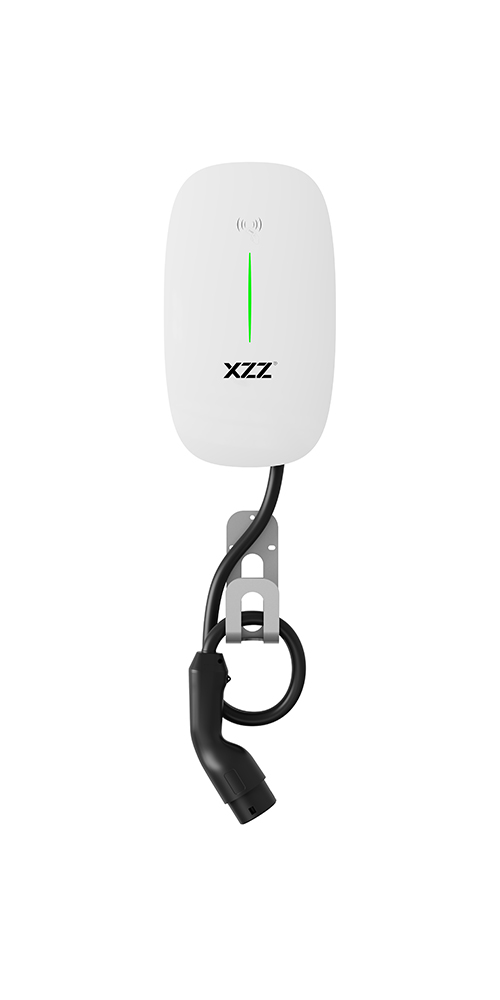

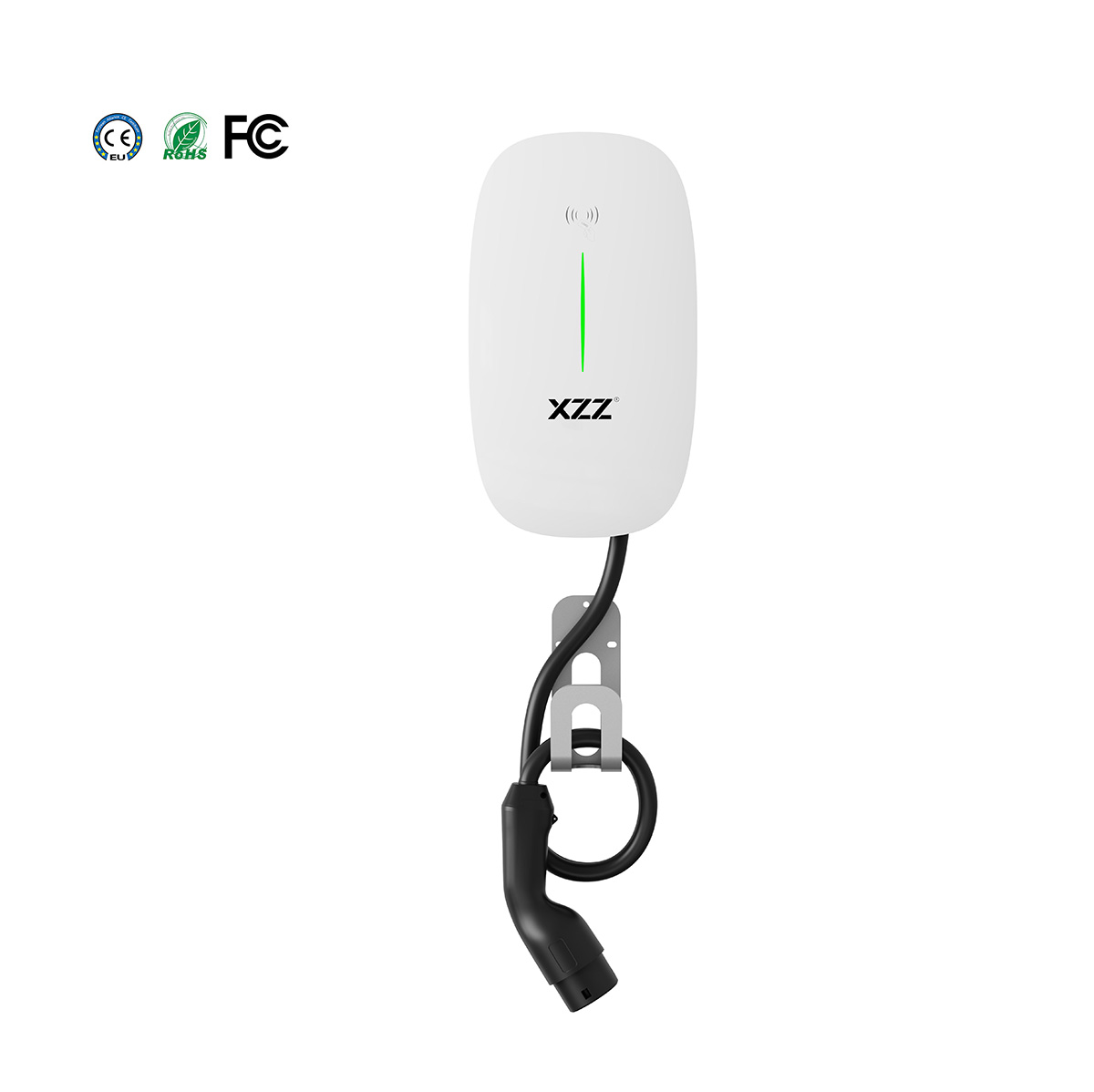

| Product images |  |  | |
| Model | XZZ Series | XZZ Series | |
| Input | Power Supply | L1+L2+G | L1+L2+G |
| Rated Voltage | 240V AC | 240V AC | |
| Max Current | 40A | 50A | |
| Frequency | 60Hz | 60Hz | |
| Wiring Type | NEMA 14-50P/NEMA 6-50P | Hardwired | |
| Output | Max Power | 10KW | 12KW |
| Charging Outlet | SAE JI772 Compliant, Type 1 Plug | SAE JI772 Compliant, Type 1 Plug | |
| Cable Length | 7m(23feet) | 7m(23feet) | |
| User interface | Housing Material | Pc | Pc |
| LED Indicator | Green/Yellow/Red | Green/Yellow/Red | |
| RFID Reader | Mifare 1SO/EC 14443A | Mifare 1SO/EC 14443A | |
| Start Mode | Mifare 1SO/EC 14443A | Mifare 1SO/EC 14443A | |
| Communication | Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes | |
| OCPP | OCPP 16 Json | OCPP 16 Json | |
| Safety | Leakage Current Protection | CCID 20 NEMA4 K10 Over current protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection UL/FCC/Energy Star Foc/ic/Energy Star/CSA | |
| Enclosure Rating | |||
| Impact Protection | |||
| Electrical Protection | |||
| Certification Standard | |||
| Environment | Limited Warranty | 2 years Wal-mount/Floor-mount -30°C~+50°C(-22°F-122°F) 5%-95% <2000m (6561.7 feet) | |
| installation | |||
| Working Temperature | |||
| Working Humidity | |||
| Work Aititude | |||
| Packoge | Product Dimension | 344*201*100mm(H*W*D) | |
| Safety Protection | IP65 IK08 | ||
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our Caro Series Home Wallbox can provide the following ranges after 1 hour of charging:
7kW version: 46 kilometers
11kW version: 69 kilometers
- How to monitoring the charging progress of the EV charger?
You are able to monitor our Caro Series Home Wallbox through your mobile App, our Evchargo Cloud software system, and the Led Indicator on the charger.
- Which types of electric vehicles is this product compatible with?
This product is compatible with all Type 2 EV models.
| Quantity (sets) | 1 - 10 | 11 - 300 | 301 - 1000 | > 1000 |
| Lead time (days) | 7 | 15 | 35 | To be negotiated |
FAQ
1.Q:How long is the delivery time of your EV charger products?
A:We can ship in 3 days if ship from oversea warehouse.
2.Q:What kind of certificates your EV charger products have?
A:Our products have acquired UN38.3,CE,FCC,UL and PSE certificates, which are able to satisfy most country's importing requirements.
3.Q:Can you ship your EV charger products by sea or by air ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
4.Q:Can I customize EV charger products?
A: Let me know the specific customization requirements and I will get back to you as soon as possible.
5.Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.
6.Q:Can I get a EV charger sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
7.Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
8.Q:What can you buy from us?
A:Portable power station, Solar energy storage system,EV charger station,car jumper starter and solar panel.
9.Q:Why should you buy from us not from other suppliers?
A:Fast delivery,Safe packaging；Personal service,customized solutions；Competitive price and small MOQ.
10.Q:What services can we provide?
A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
