Off-grid & Hybrid

Solar Panel & Air Conditioner

Send inquiry to get customized solutions

Model:
XZZ-PV Air Conditioner
Brand:
XZZ

Power:	500W-1000W
Plug:	US EU UK Universal

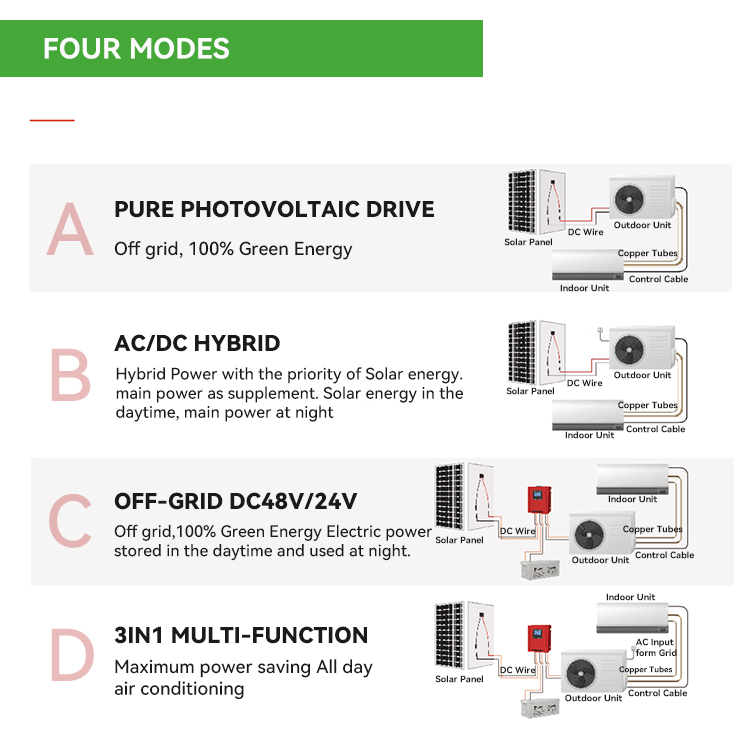

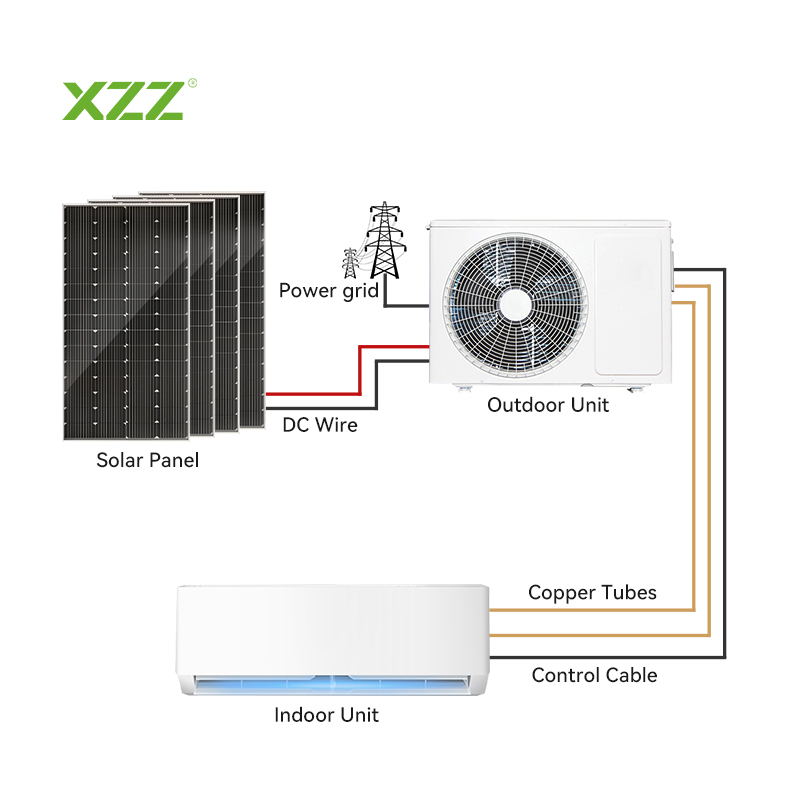

Power Grid:	Off-grid Hybrid
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

Product Paramenters

TECHNICAL PARAMETERS
MODEL		Unit	KF(R)26GW/BPS	KF(R)35GW/BPS	KF(R)-50GW/BPS	KF(R)-70GW/BPS
Power Supply		V	DC120-380V	DC120-380V	DC120-380V	DC120-380V
Cooling	Capacity	Btu/h	9000(500-11000)	12000(7000-14000)	18000(6200-19500)	24000(5100-26900)
	Power Input	W	590(100-1200)	865(110-1500)	1320(140-1800)	1980(240-3030)
	Current	A	2.68(0.45-5.45)	3.93(0.5-6.82)	6(0.6-8.18)	9(1.0-13.2)
Heating	Capacity	Btu/h	9500(3800-11500)	13000(4000-15000)	19000(4700-20000)	25000(5500-30000)
	Power Input	W	625(120-1200)	880(130-1510)	1465(200-1900)	2050(260-3140)
	Current	A	2.84(0.5-5.45)	4(0.59-6.86)	6.66(0.9-8.63)	9.32(1.1-13.7)
Moisture Removal		Lh	1.0	1.3	1.7	2.5
Max input		W	1320	1500	2300	3200
Max current		A	6	7.5	10.45	14.54
Indoor air fow (H/ML)		m3/h	570/470/370	570/470/370	721/566/458	970/780/590
Indoornoise(H/M/L)		dB(A)	41/36/28	41/36/28	43/37/32	45/39/34
Indoor Unit	NetSize (WDH)	mm	734194285	775194285	921213302	1026×220×327
	Pack size (WDH)	mm	780270360	830270360	995305380	1105310405
	Net/Gross	Kg	8.1/9.9	8.1/9.9	9.5/12.5	11.9/15.2
Outdoor air flow		m3/h	2100	2100	2100	2900
Outdoor noise		dB(A)	<50	<50	<52	≤56
Outdoor Unit	Net Size(WDH)	mm	835320540	835320540	835320540	910340700
	Pack size(WDH)	mm	900400600	900400600	900400600	1063457780
	Net/Gros	Kg	28.9/33.4	29/33.5	31/36	49.5/56
Operationtemp		℃	16℃~30℃	16℃~30℃	16℃-30℃	16℃~30℃
Ambient temp(cooling/heating)		℃	18-52/-15-34	18-52/-15-34	18-52/-15-34	18-52/-15-34
Application area		m²	12-18	16-23	24-35	32-47
Loading Qty 20/40'/40'HQ		pcs	93/186/225	93/186/225	83/166/202	52/104/128

Product Display

Why Choose Us

photobank (19) photobank (21) photobank (20)

Contact Us

photobank (22)

FAQ

1.Q:How long is the delivery time of your products?

A:We can ship in 3 days if ship from oversea warehouse.

2.Q:What kind of certificates your products have?

A:Our products have acquired UN38.3,CE,FCC,UL and PSE certificates, which are able to satisfy most country's importing requirements.

3.Q:Can you ship your products by sea or by air ?

A:We have long-term cooperated forwarders who are professional at battery shipment.

4.Q:Can I customize products?

A: Let me know the specific customization requirements and I will get back to you as soon as possible.

5.Q:How do you provide after-sales service?

A:We have overseas branches can provide repair and replacement.

6.Q:Can I get a sample?

A:Yes, please leave your contact information and our sales manager will contact you soon.

7.Q:How can we guarantee quality?

A:Always a pre-production sample before mass production;Always final Inspection before shipment.

8.Q:What can you buy from us?

A:Portable power station, Solar energy storage system,EV Charging station,car jumper starter and solar panel.

9.Q:Why should you buy from us not from other suppliers?

A:Fast delivery,Safe packaging；Personal service,customized solutions；Competitive price and small MOQ.

10.Q:What services can we provide?

A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
