Product Description
● No battery function available ( optional );
● SBU Mode : Utility Power , battery and PV Power complement each other ;
● Pure sine wave solar inverter ;
● Built - in 150A MPPT ( Max PV 5000W) solar charger ;
● High PV input range from 120V-450Vdc;
● Smart battery charger design for optimized battery performance ;
● Configurable AC / Battery input priority via LCD setting ;
● Auto restart while PV is recovering ;
● Over - load , over temperature and output short circuit protection;
● Communication with RS232/RS485;
● Cold restart function;
● Restore default Settings with one click;
Overview
The GA series multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger, and battery charger to provide uninterrupted power support.
At the same time, this inverter supports different types of batteries such as lead-acid and lithium-ion.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar charger priority, and acceptable input voltage for various applications.
According to your needs, please feel free to contact us and know about other possible system architectures.
This inverter can power various electrical appliances in home or office environments, including light tubes, fans,refrigerators,air conditioners, and other motor-type appliances.
Technical Parameters

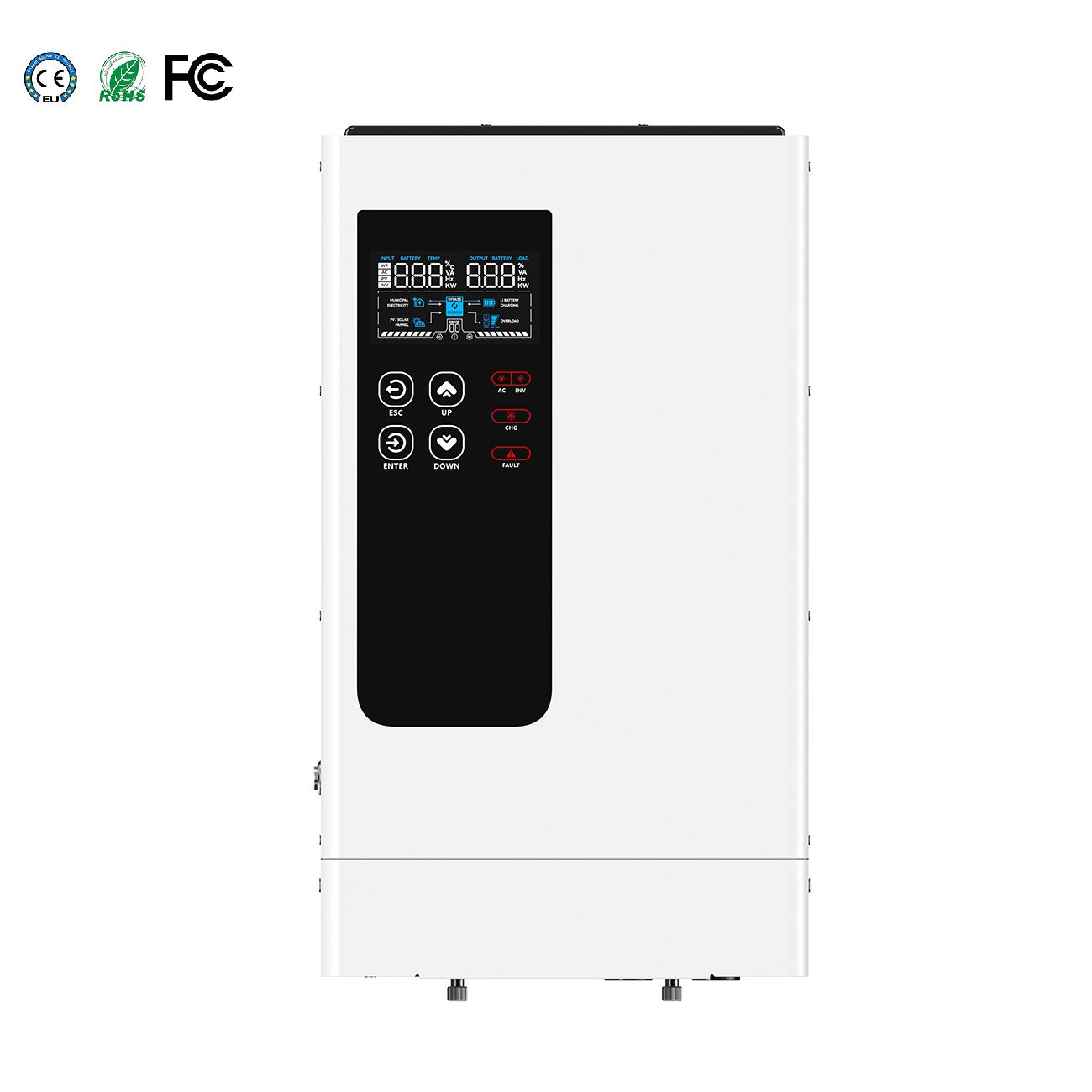

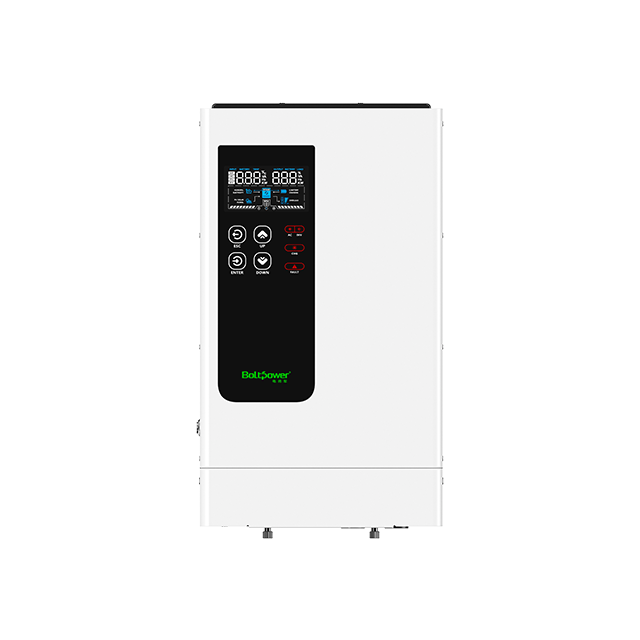

Product images |
|
| Capacity | 5120Wh |
| Battery Type | LiFePO4 |
| Voltage | 51.2V |
| Selectable Voltage Range | 170-265VAC(for personal computers) |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% |
| Surge power | 2* rated power for 5 seconds |
| Efficiency(peak)PV to INV | 97% |
| Efficiency(peak)BAT to INV | 94% |
| Transfer Time | 10ms(for personal computers) |
| Wave form | Pure Sine Wave |
| Battery Voltage | 48VDC |
| Bulk Charging Voltage Flooded Battery | 58.4VDC |
| Bulk Charging Voltage AGM/GEL Battery | 56.4VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| Maximum charge current | 110A |
| MAX.PV Array Power | 5000W |
| MPPT Range @ Operating Voltage | 120-450VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Charging Current | 150A |
| Maximum Efficiency | 99% |
| Dimension.D*W*H(mm) | 468*318*159mm |
| Net Weight(kgs) | 7.5kg |
| Communication Interface | RS485/RS232(Standard) |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0℃ to 55℃ |
| Storage Temperature | -15℃ to 60℃ |
Advantages
● Pure Sine Wave
● 150A MPPT/solar charger
● SBU Mode
● High PV input
● LCD setting
● Multiple Protections
● RS232/RS485/Communication
● Cold restart
Why Choose Us
FAQ
1.Q:How long is the delivery time of your solar power station products?
A:We can ship in 3 days if ship from oversea warehouse.
2.Q:What kind of certificates your solar generator power station products have?
A:Solar generator power station products have acquired UN38.3, CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
3.Q:Can you ship your solar generator power station products by sea or by air ?
A:We have long-term cooperated forwarders who are professional at battery shipment.
4.Q:Can you supply solar panels? Can you recommend?
A:Yes, we have solar panels, we can recommend you suitable solar panels.
5.Q:Can I customize solar generator power station products?
A: Let me know the specific customization requirements and I will get back to you as soon as possible.
6.Q:How do you provide after-sales service?
A:We have overseas branches can provide repair and replacement.
7.Q:Can I get a solar generator power station sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
8.Q:Who are we?
A: We are based in Guangdong, China, start from 2013,sell to North America(60.00%),Domestic Market(15.00%),Western Europe(10.00%),South America(8.00%),Oceania(3.00%),Africa(2.00%),Eastern Europe(2.00%). There are total about 301- 500 people in our office.
9.Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
10.Q:What can you buy from us?
A:Our main products include portable power station, home energy storage system,EV charger,car jumper starter,solar panel and other related energy products.
11.Q:Why should you buy from us not from other suppliers?
A:Own 200,000 square meters battery cell production industrial Jump Starter 7 years experience for OEM and ODM Patent new battery cell technology and QDSP jump starter 30 people R&D team,all product are private mould 200,000pcs capacity per month.
12.Q:What services can we provide?
A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japan.
