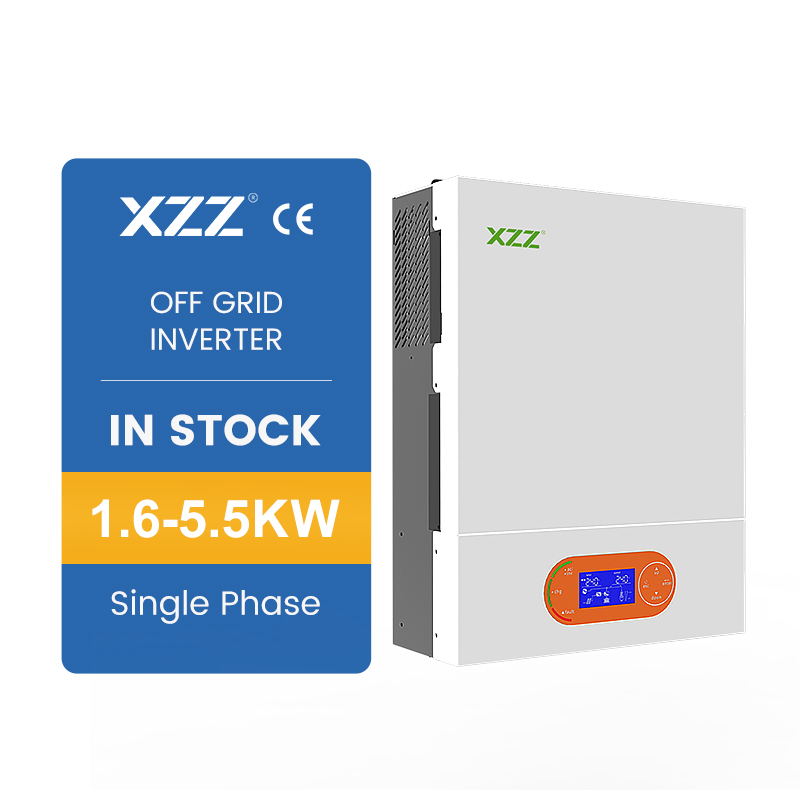

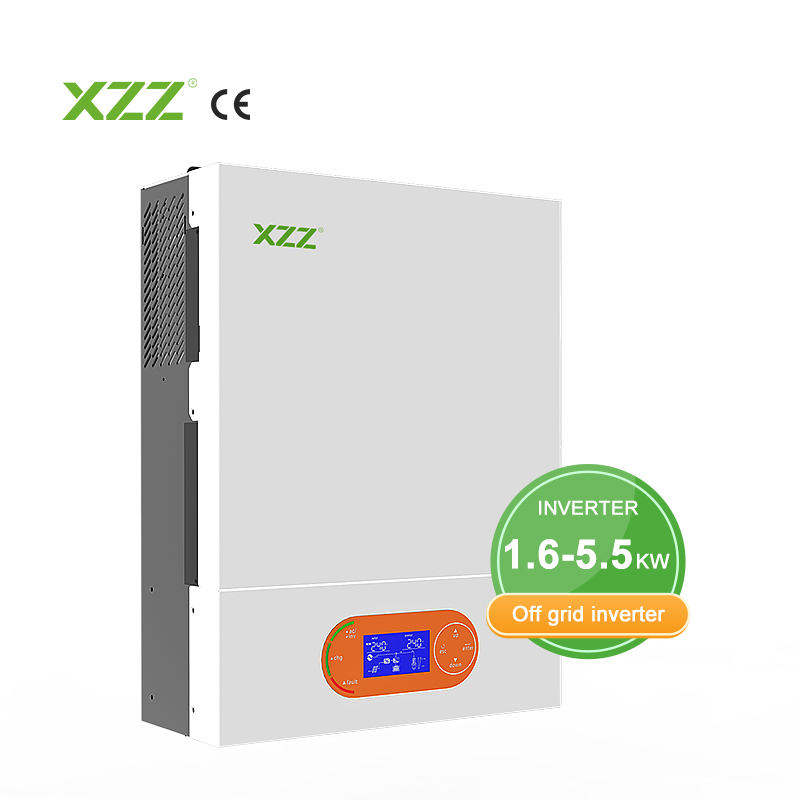

Off Grid Energy Storage Inverter

PV Range: 60-450VDC

Model:
XZZ-VM II PRO
Brand:
XZZ

Power:	1.6KW 3.2KW 3.5KW 5.5KW
Availability:

Quantity:



Inquire Add to Basket

Product Description

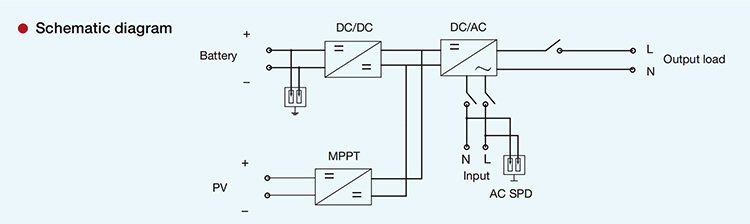

Overview

Product Paramenters

Technical Specification	XZZ VM II PRO series
Rated Power	1500VA/1500W	3000 VA/3000W	3500VA/3500W	5000VA/5500W
AC INPUT
voltage	230VAC
Selectable Voltage Range	170-280VAC(ForPer Computers);90-280 VAC(ForHome Appliances) sonal
Frequency Range	50/60Hz(Auto sensing)
AC OUTPUT
AC Voltage Regulation(Battery Mode)	230VAC±5%
Surge Power	3000VA	6000VA	7000VA	11000VA
Efficiency(Peak)	up to 93.5%
Transfer Time	10ms (For Personal Computers);20ms (For Home Appliances)
Wave Form	pure sine wave
BATTERY
Battery Voltage	12VDC	24VDC		48VDC
Floating charge Voltage	13.5VDC	27VDC		54VDC
Overcharge Protection	16VDC	33VDC		63VDC
SOLAR CHARGER AC CHARGER
Maximum PV Array Open Circuit Voltage	500VDC
Maximum PV Array Power	2000W	3000W	4500W	5500W
MPPT Range Operating Voltage	60~450VDC		60~450VDC
Maximum Solar Charge Current	80A		100A
Maximum AC Charge Current	60A		80A
Maximum Charge Current	80A		100A
GENERAL PARAMETERS
Operation Temperature	-10°C to 50°C
Relative humidity	5%0 95% Relatve Humidity (Non-condensing)
Dimensions D x W xH(mm)	34827095		400300115
Net Weight(KG)	4	5	8.5	9

Product Display

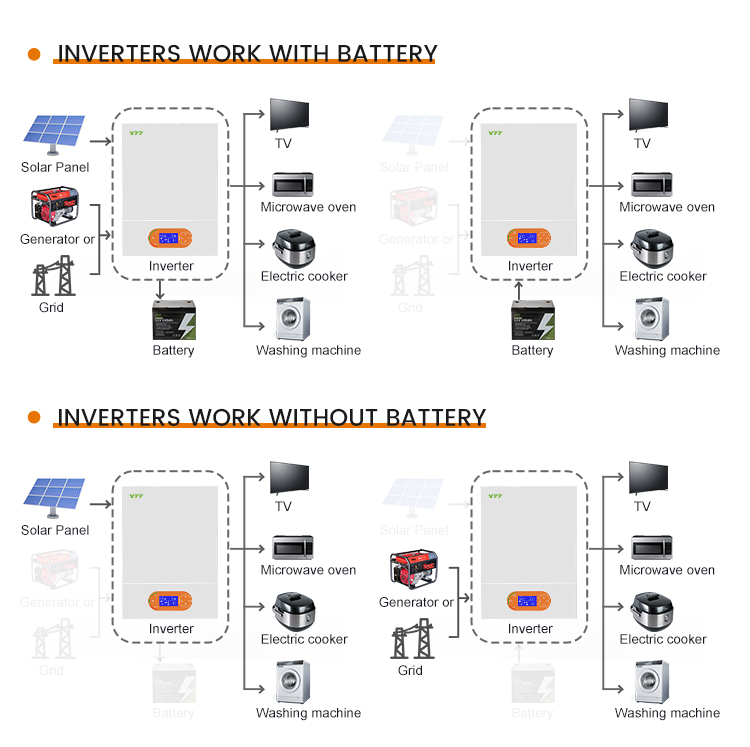

逆变器详情新_07 逆变器详情新_06

Why Choose Us

photobank (19) photobank (21) photobank (20)

Contact Us

photobank (22)

FAQ

1.Q:How long is the delivery time of your products?

A:We can ship in 3 days if ship from oversea warehouse.

2.Q:What kind of certificates your products have?

A:Our products have acquired UN38.3,CE,FCC,UL and PSE certificates, which are able to satisfy most country's importing requirements.

3.Q:Can you ship your products by sea or by air ?

A:We have long-term cooperated forwarders who are professional at battery shipment.

4.Q:Can I customize products?

A: Let me know the specific customization requirements and I will get back to you as soon as possible.

5.Q:How do you provide after-sales service?

A:We have overseas branches can provide repair and replacement.

6.Q:Can I get a sample?

A:Yes, please leave your contact information and our sales manager will contact you soon.

7.Q:How can we guarantee quality?

A:Always a pre-production sample before mass production;Always final Inspection before shipment.

8.Q:What can you buy from us?

A:Portable power station, Solar energy storage system,EV Charging station,car jumper starter and solar panel.

9.Q:Why should you buy from us not from other suppliers?

A:Fast delivery,Safe packaging；Personal service,customized solutions；Competitive price and small MOQ.

10.Q:What services can we provide?

A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
