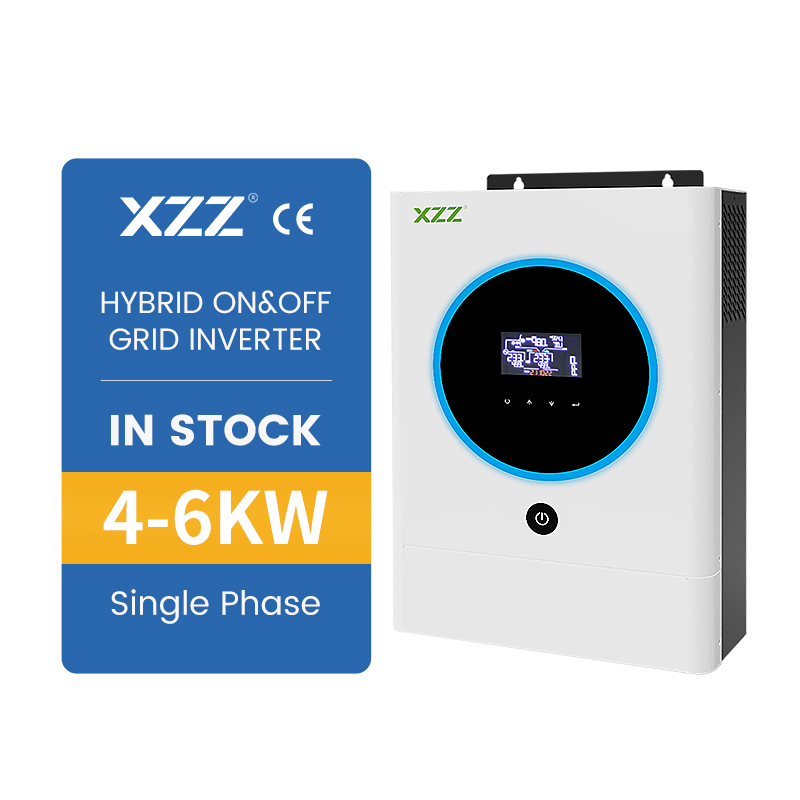

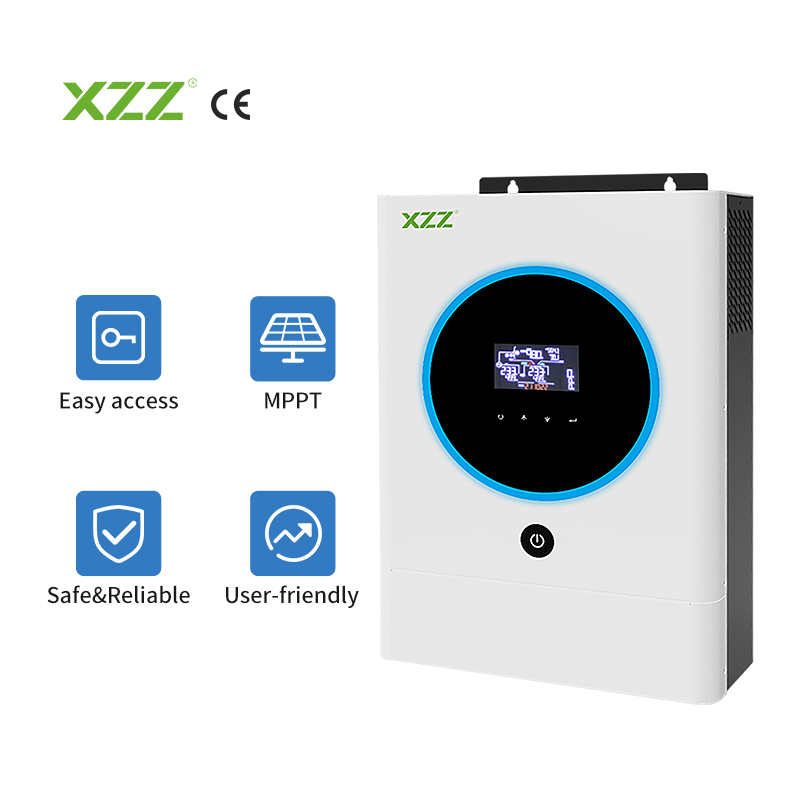

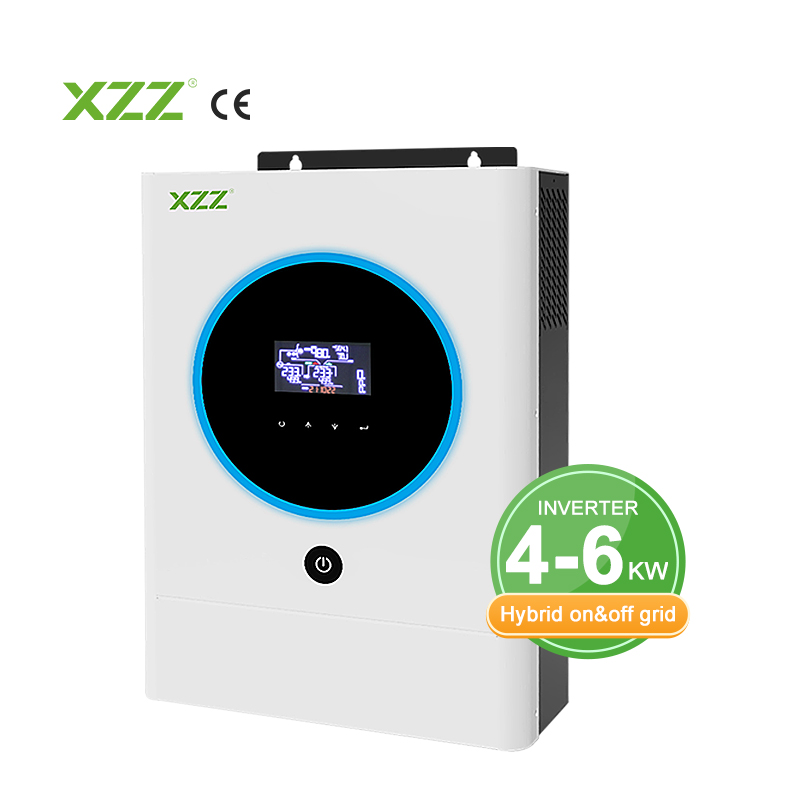

Hybrid MPPT Hybrid Solar Inverter 4KW 6KW Inverter Solar Power System Energy Storage Inverter Home Hybrid Inverter Solar Controller For Energy Storage System Pure Sine Wave Single Phase

Hybrid MPPT Hybrid Solar Inverter 4KW 6KW Inverter Solar Power System Energy Storage Inverter Home Hybrid Inverter Solar Controller For Energy Storage System Pure Sine Wave Single Phase

Hybrid On & Off Grid Energy Storage Inverter

PV Range: 60-450VDC

Model:
XZZ-VM IV
Brand:
XZZ

Power:	4KW 6KW
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

Product Paramenters

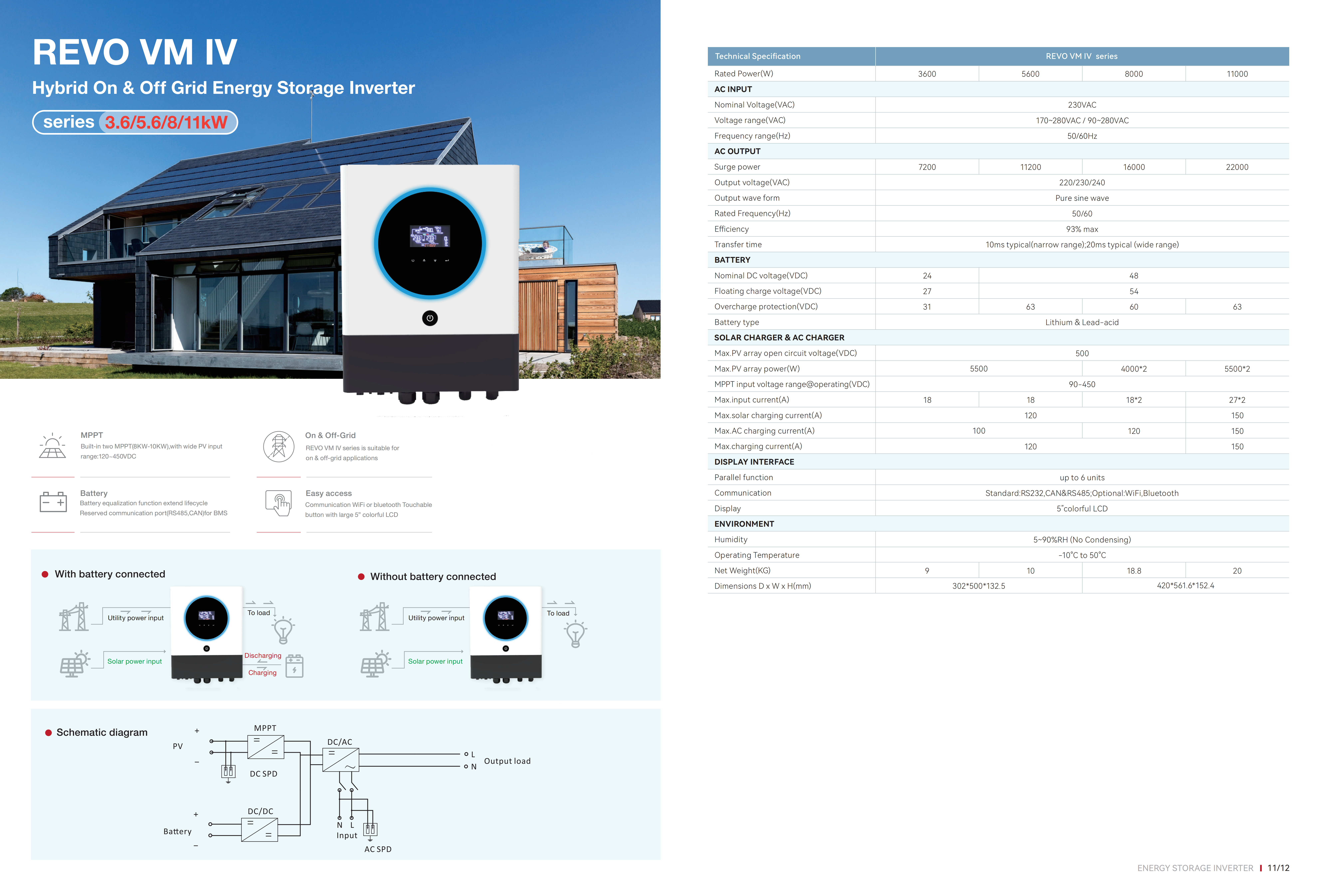

Technical Specification	XZZ VM IV series

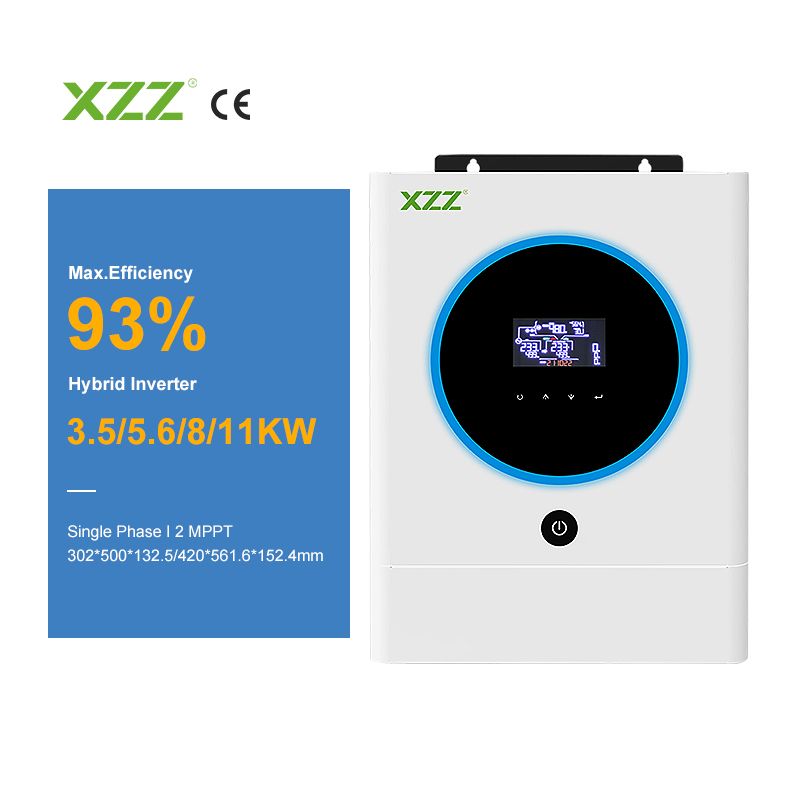

Rated Power(W)	3600	5600	8000	11000
AC INPUT
Nominal Voltage(VAC)	230VAC
Voltage range(VAC)	170~280VAC/90~280VAC
Frequency range(Hz)	50/60Hz
AC OUTPUT
Surge power	7200	11200	16000	22000
Output voltage(VAC)	220/230/240
Output wave form	Pure sine wave
Rated Frequency(Hz)	50/60
Efficiency	93%max
Transfer time	10ms typical(narrow range);20ms typical (wide range)
BATTERY
Nominal DC voltage(VDC)	24	48
Floating charge voltage(VDC)	27	54
Overcharge protection(VDC)	31	63	60	63
Battery type	Lithium &Lead-acid
SOLAR CHARGER &AC CHARGER
Max.PV array open circuit voltage(VDC)	500
Max.PV array power(W)	5500		4000*2	5500*2
MPPTinput voltage range@operating(VDC)	90-450
Max.input current(A)	18	18	18*2	27*2
Max.solar charging current(A)	120			150
Max.AC charging current(A)	100		120	150
Max.charging current(A)	120			150
DISPLAY INTERFACE
Parallel function	up to 6 units
Communication	Standard:RS232,CAN&RS485;Optional:WiFi,Bluetooth
Display	5”colorful LCD
ENVIRONMENT
Humidity	5~90%RH(No Condensing)
Operating Temperature	-10℃ to 50℃
Net Weight(KG)	9	10	18.8	20
Dimensions DxWxH(mm)	302500132.5		420561.6152.4

Product Display

逆变器详情新_07 逆变器详情新_06

Why Choose Us

photobank (19) photobank (21) photobank (20)

Contact Us

photobank (22)

FAQ

1.Q:How long is the delivery time of your products?

A:We can ship in 3 days if ship from oversea warehouse.

2.Q:What kind of certificates your products have?

A:Our products have acquired UN38.3,CE,FCC,UL and PSE certificates, which are able to satisfy most country's importing requirements.

3.Q:Can you ship your products by sea or by air ?

A:We have long-term cooperated forwarders who are professional at battery shipment.

4.Q:Can I customize products?

A: Let me know the specific customization requirements and I will get back to you as soon as possible.

5.Q:How do you provide after-sales service?

A:We have overseas branches can provide repair and replacement.

6.Q:Can I get a sample?

A:Yes, please leave your contact information and our sales manager will contact you soon.

7.Q:How can we guarantee quality?

A:Always a pre-production sample before mass production;Always final Inspection before shipment.

8.Q:What can you buy from us?

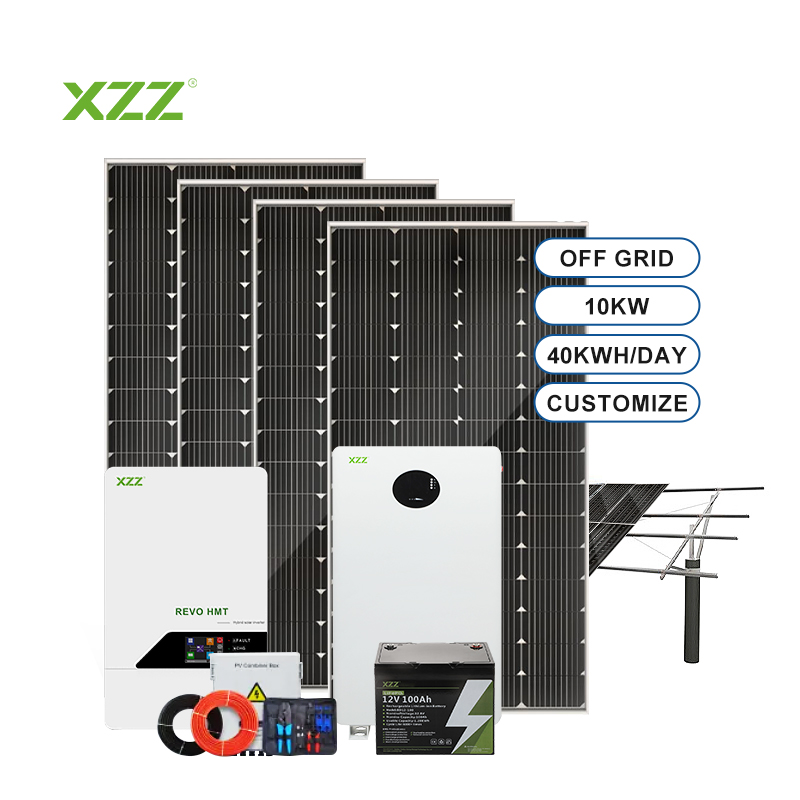

A:Portable power station, Solar energy storage system,EV Charging station,car jumper starter and solar panel.

9.Q:Why should you buy from us not from other suppliers?

A:Fast delivery,Safe packaging；Personal service,customized solutions；Competitive price and small MOQ.

10.Q:What services can we provide?

A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
