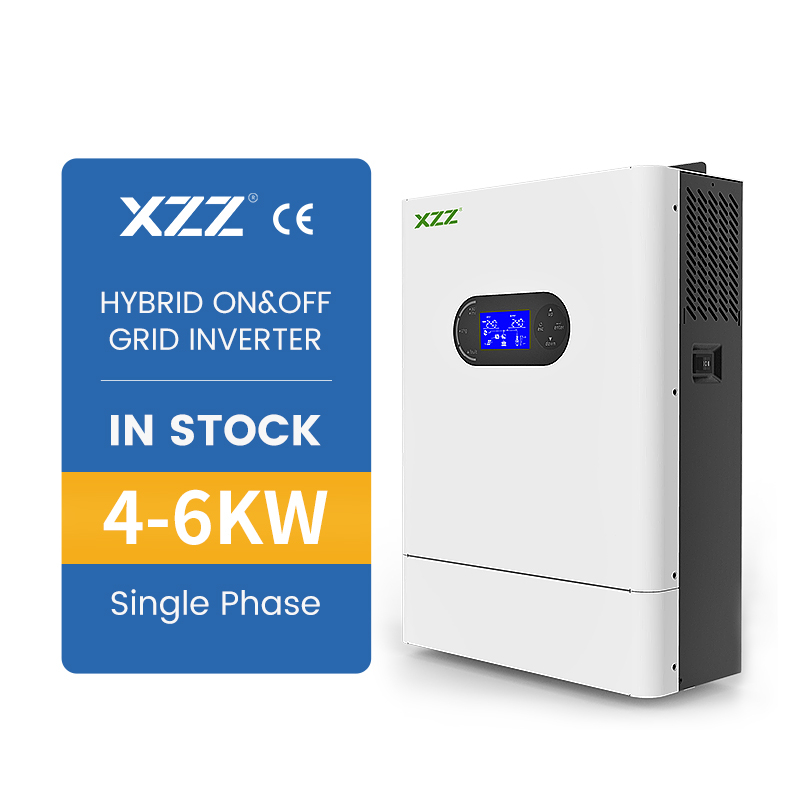

Hybrid Inverter Solar Power System Energy Storage Inverter Home Hybrid Inverter Solar Controller 93% Efficiency MPPT Hybrid Solar Inverter 4Kw 6Kw For Energy Storage System Pure Sine Wave Single Phase

Hybrid Inverter Solar Power System Energy Storage Inverter Home Hybrid Inverter Solar Controller 93% Efficiency MPPT Hybrid Solar Inverter 4Kw 6Kw For Energy Storage System Pure Sine Wave Single Phase

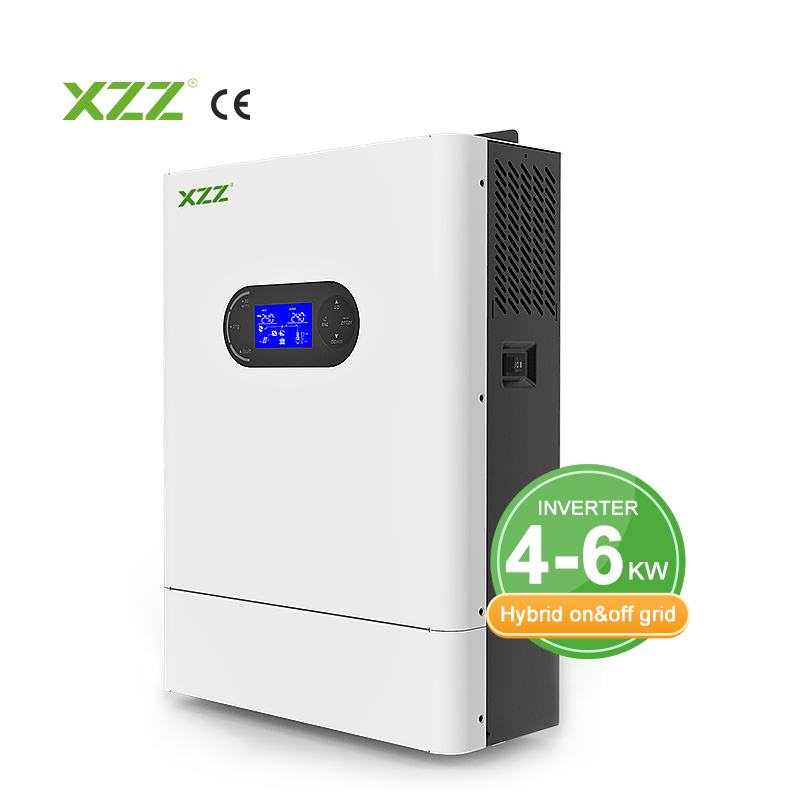

Hybrid On & Off Grid Energy Storage Inverter

PV Range: 60-450VDC

Model:
XZZ-HM
Brand:
XZZ

Power:	4KW 6KW
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

Product Paramenters

Technical Specification	XZZ HM series
Rated Power	4000VA/4000W	6000VA/6000W
AC INPUT
AC Voltage	230VAC
Voltage Range	170-280VAC(For Personal Computers);90-280 VAC(For Home Appliances)
Frequency Range	50/60Hz(Auto sensing)
AC OUTPUT
Surge Power	8000VA	12000VA
AC Voltage Regulation(Battery Mode)	230VAC±5%
Rated frequency	50/60Hz
Efficiency(Peak)	93%
Transfer Time	10ms(For Personal Computers);20ms(For Home Appliances)
BATTERY
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Battery type	Lithium/Lead-acid
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Voltage(V)	500VDC
Maximum PV Array Power	5000W 6000W
MPPT voltage range(V)	60~450VDC
Maximum input current	27A
MPPT tracker/strings	1
Maximum solar charge current	120A
Maximum AC charge current	100A
Maximum charge current	120A
PROTECTION&FEATURE
AC overcurrent	Yes
AC overvoltage	Yes
Over temperature protection	Yes
Smart load management	Yes
On Grid	Yes

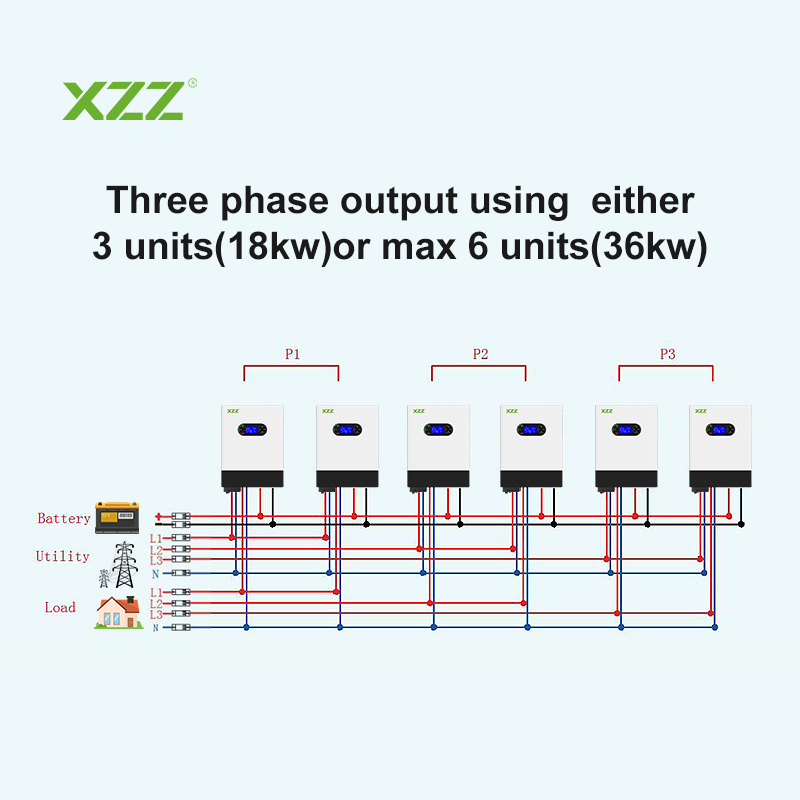

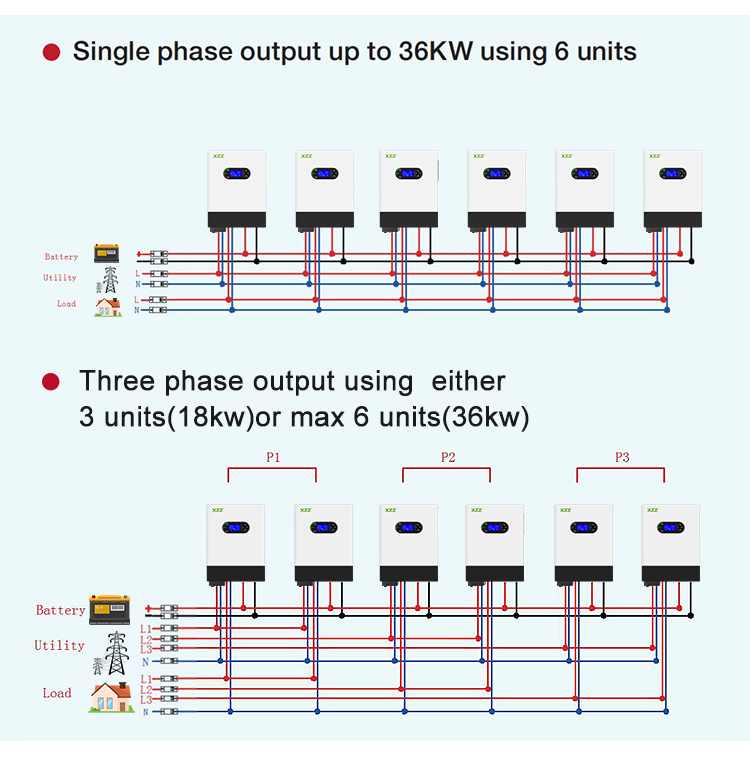

Parallel Function	Yes (optional)
GENERAL PARAMETERS
Operation temperature	-10℃~50℃
Relative humidity	5%～95%(Non-condensing)
Altitude	(2000m Derating)

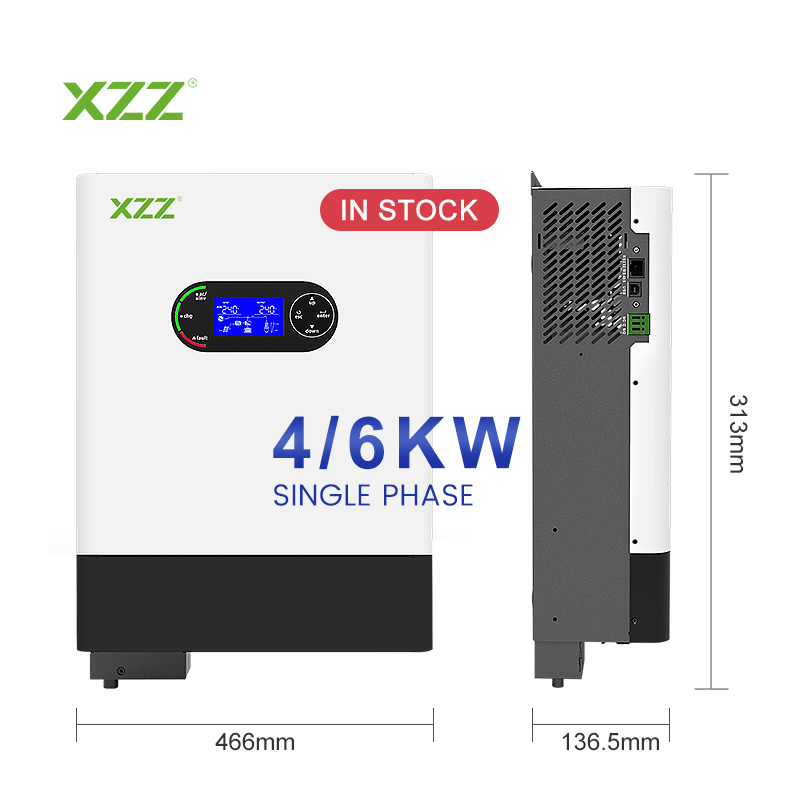

Dimensions DxWxH(mm)	466313136.5
Net Weight(KG)	8.5	9
DISPLAY AND COMMUNICATION
Display	Touch buttons
Interface	Standard:RS232,USB;CAN&RS485;Optional:WiFi,Bluetooth
Safety standard	EN/IEC62109-1,EN/IEC62109-2

Product Display

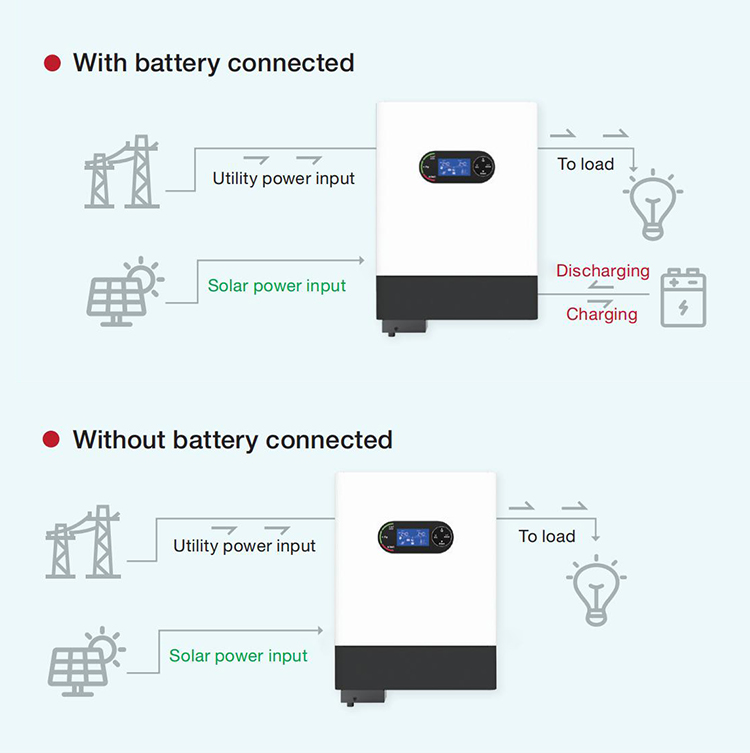

逆变器详情_01 逆变器详情_02 逆变器详情_03 逆变器详情_04 逆变器详情新_07 逆变器详情新_06
