MPPT Offgrid Solar Inverter 4KW 6KW Off Grid Inverter Solar Power System Energy Storage Inverter Home Solar Controller For Energy Storage System Pure Sine Wave Single Phase

MPPT Offgrid Solar Inverter 4KW 6KW Off Grid Inverter Solar Power System Energy Storage Inverter Home Solar Controller For Energy Storage System Pure Sine Wave Single Phase

Off Grid Energy Storage Inverter

PV Range: 60-450VDC

Model:
XZZ-VM IV PRO T
Brand:
XZZ

Power:	4KW 6KW
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

Product Paramenters

Technical Specification	XZZ VM IV PRO-T series
Rated Power	4000VA/4000W	6000VA/6000W
AC INPUT
AC Voltage	230VAC
Voltage Range	170-280VAC(For Personal Computers);90-280 VAC(For Home Appliances)
Frequency Range	50/60Hz(Auto sensing)
AC OUTPUT
Surge Power	8000VA	12000VA
AC Voltage Regulation(Battery Mode)	230VAC±5%
Efficiency(Peak)	93%
Transfer Time	10ms(For Personal Computers);20ms(For Home Appliances)
BATTERY
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Battery type	Lithium/Lead-acid
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage	500VDC
Maximum PV Array Power	5000W	6000W
MPPT voltage range(V)	60~450VDC
Maximum input current	27A
MPPT tracker/strings	1
Maximum solar charge current	120A
Maximum AC charge current	100A
Maximum charge current	120A
PROTECTION &FEATURE
AC overcurrent	Yes
AC overvoltage	Yes
Over temperature protection	Yes
Smart load management	Yes
GENERAL PARAMETERS
Operation temperature	0℃~50℃
Relative humidity	5%～95%(Non-condensing)
Altitude	(>2000m Derating)

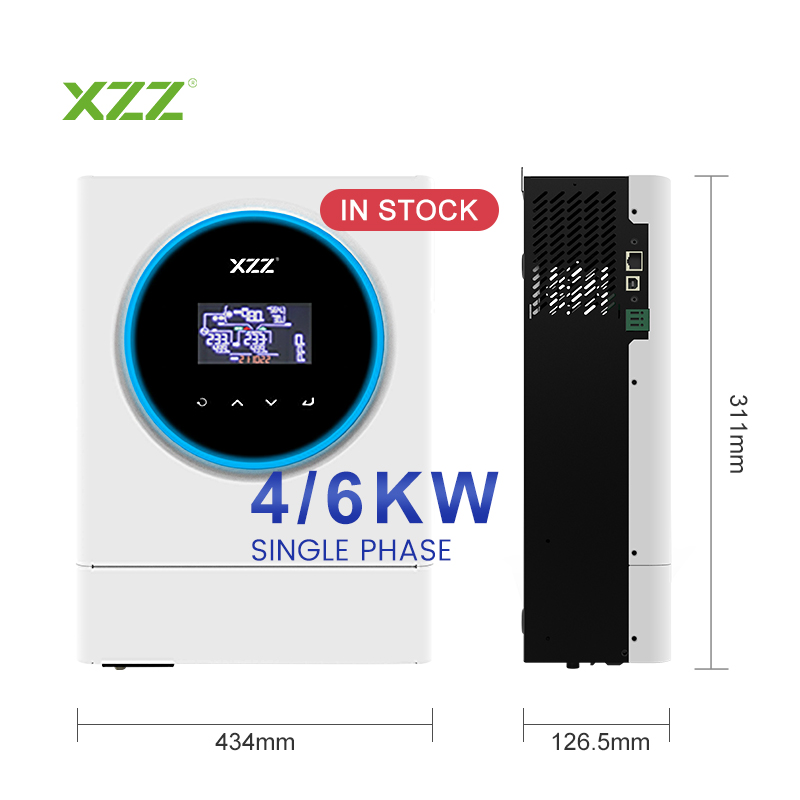

Dimensions DxWxH(mm)	434311126.5
Net Weight(KG)	8.5	9
Display	Touch buttons
Interface	Standard:RS232;CAN&RS485;Optional:WiFi,Bluetooth
Safety standard	EN/IEC62109-1,EN/IEC62109-2

Product Display

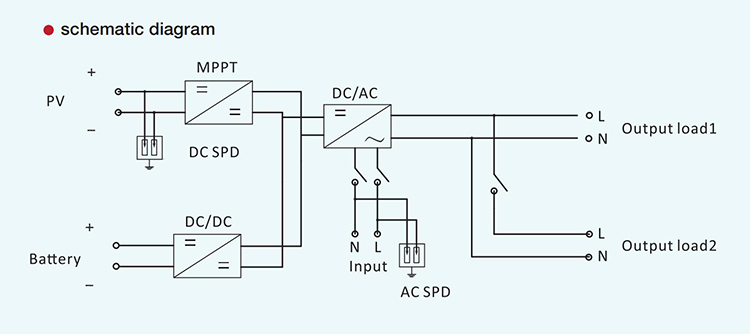

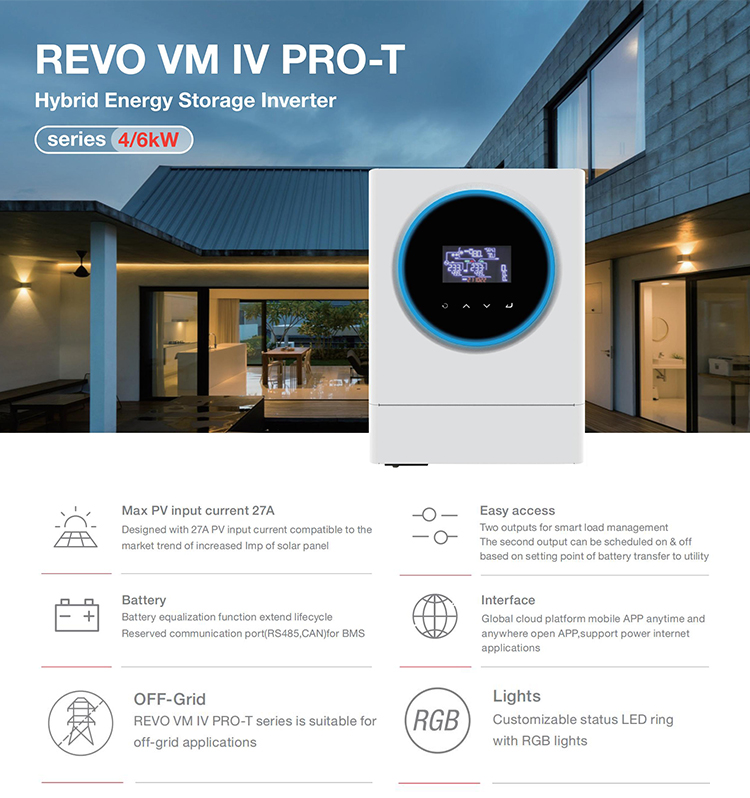

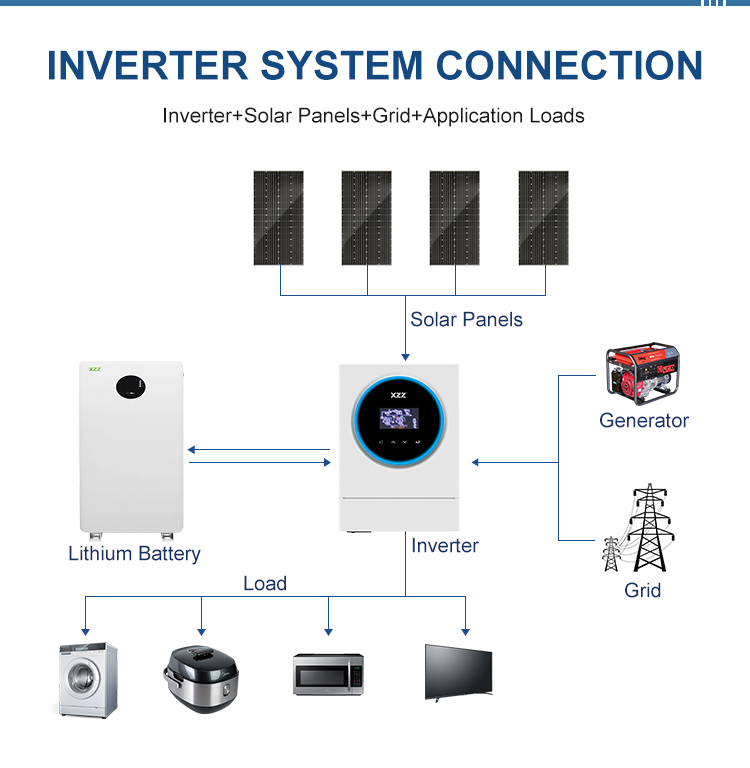

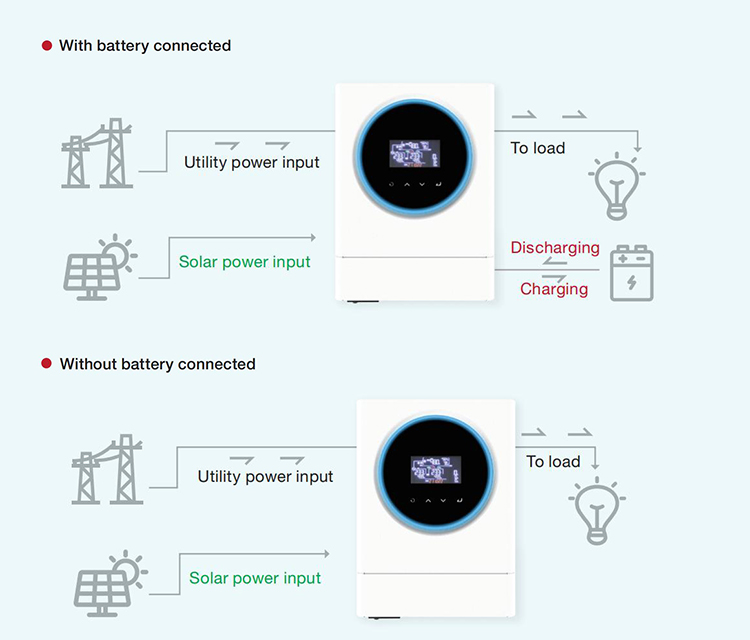

逆变器详情_01 逆变器详情_02 逆变器详情_03 逆变器详情_04 逆变器详情_05

逆变器详情新_07 逆变器详情新_06

Why Choose Us

photobank (19) photobank (21) photobank (20)

Contact Us

photobank (22)

FAQ

1.Q:How long is the delivery time of your products?

A:We can ship in 3 days if ship from oversea warehouse.

2.Q:What kind of certificates your products have?

A:Our products have acquired UN38.3,CE,FCC,UL and PSE certificates, which are able to satisfy most country's importing requirements.

3.Q:Can you ship your products by sea or by air ?

A:We have long-term cooperated forwarders who are professional at battery shipment.

4.Q:Can I customize products?

A: Let me know the specific customization requirements and I will get back to you as soon as possible.

5.Q:How do you provide after-sales service?

A:We have overseas branches can provide repair and replacement.

6.Q:Can I get a sample?

A:Yes, please leave your contact information and our sales manager will contact you soon.

7.Q:How can we guarantee quality?

A:Always a pre-production sample before mass production;Always final Inspection before shipment.
