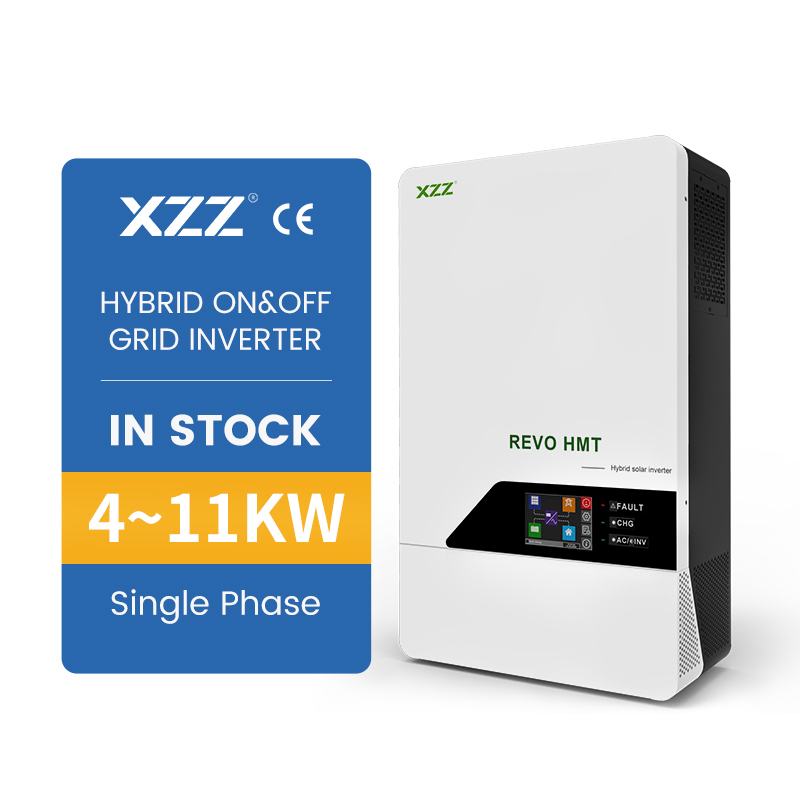

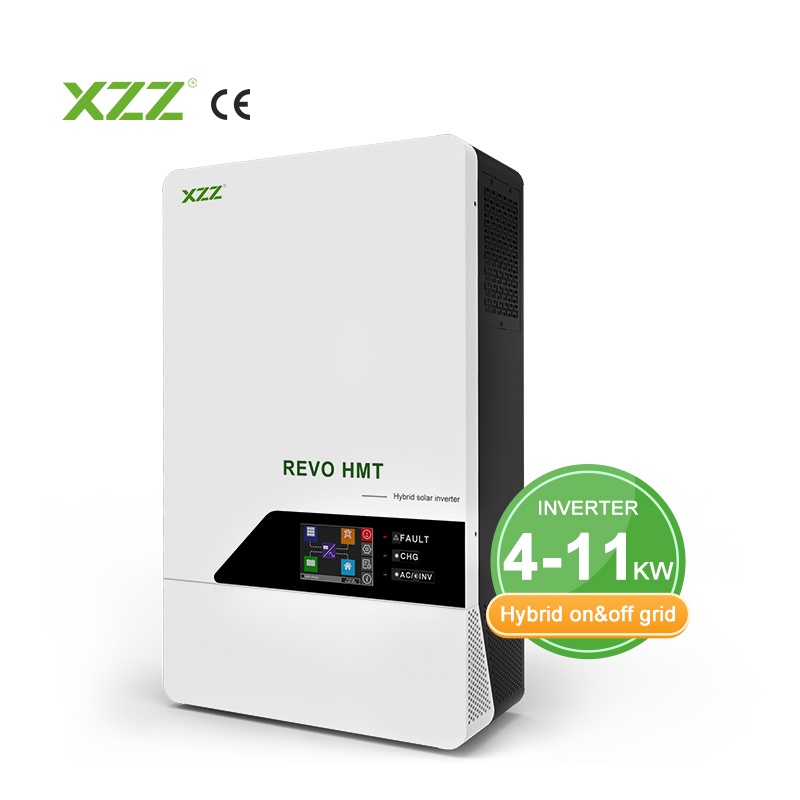

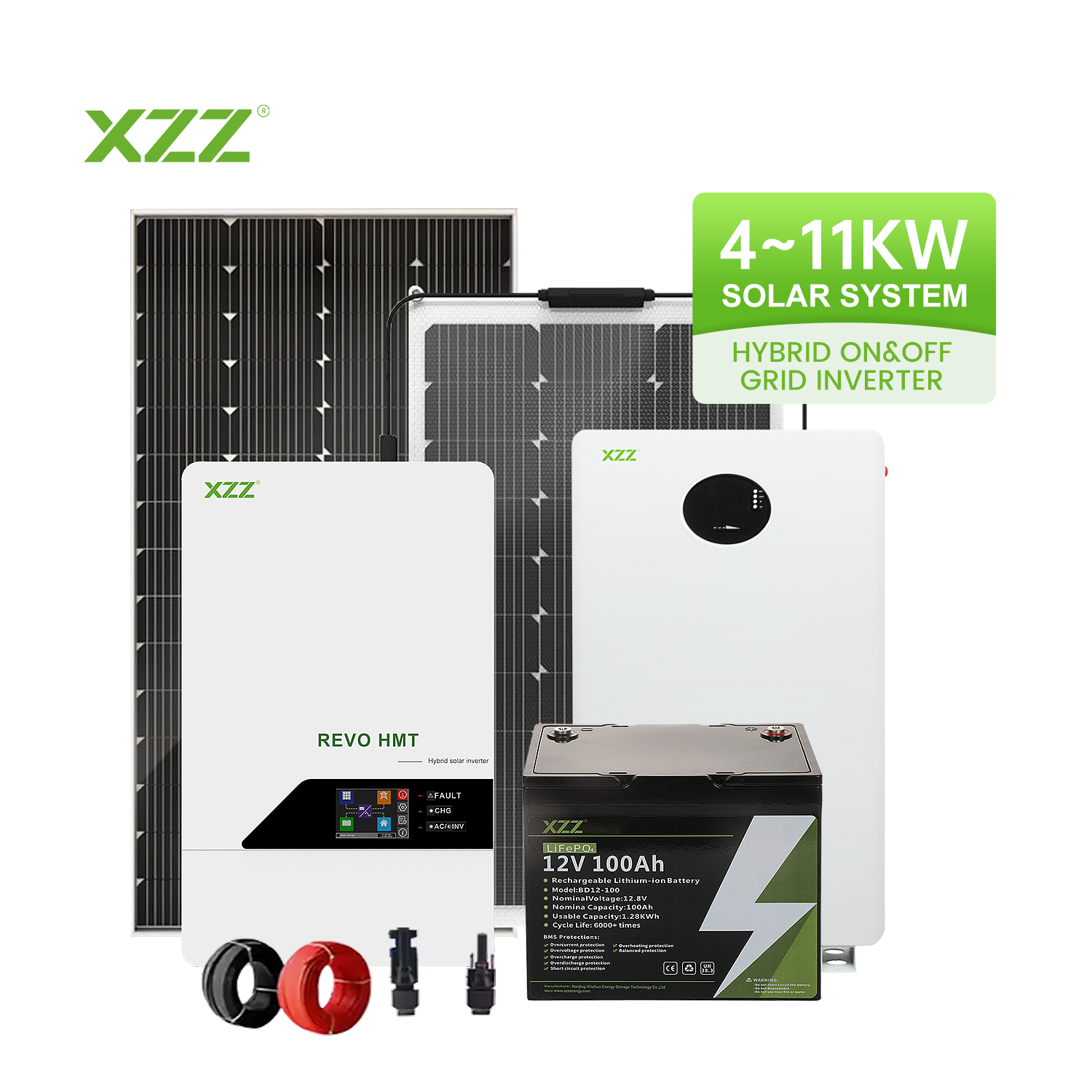

Hybrid Inverter Solar Power System Solar Controller 93% Efficiency MPPT Hybrid Solar Inverter 4Kw 6Kw 11KW For Energy Storage System Pure Sine Wave Single Phase

Hybrid Inverter Solar Power System Solar Controller 93% Efficiency MPPT Hybrid Solar Inverter 4Kw 6Kw 11KW For Energy Storage System Pure Sine Wave Single Phase

Hybrid On & Off Grid Energy Storage Inverter

PV Range: 60-450VDC

Model:
XZZ-HMT
Brand:
XZZ

Power:	4KW 6KW 8KW 11KW
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

Product Paramenters

Technical Specification	XZZ HMT series
Rated Power	4000VA/4000W	6000VA/6000W
AC INPUT
AC Voltage	230VAC
Voltage Range	170-280VAC(For Personal Computers);90-280 VAC(For Home Appliances)
Frequency Range	50/60Hz(Auto sensing)
AC OUTPUT
Surge Power	8000VA 12000VA
Voltage Regulation(Battery Mode)	230VAC±5%
Rated frequency	50/60Hz
Efficiency(Peak)	93%
Transfer Time	10ms (For Personal Computers);20ms(For Home Appliances)
BATTERY
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
Battery type	Lithium/Lead-acid
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage	500VDC
Maximum PV Array Power	5000W	6000W
MPPT voltage range(V)	90~450VDC
Maximum input current	27A
MPPT tracker/strings	1
Maximum solar charge current	80A	120A
Maximum AC charge current	60A	100A
Maximum charge current	80A	120A
PROTECTION&FEATURE
AC overcurrent	Yes
AC overvoltage	Yes
Over temperature protection	Yes
Smart load management	Yes
On Grid	Yes
Parallel function	Yes,6 units
GENERAL PARAMETERS
Operation temperature	-10℃~50℃
Relative humidity	5%～95%(Non-condensing)
Altitude	(>2000m Derating)

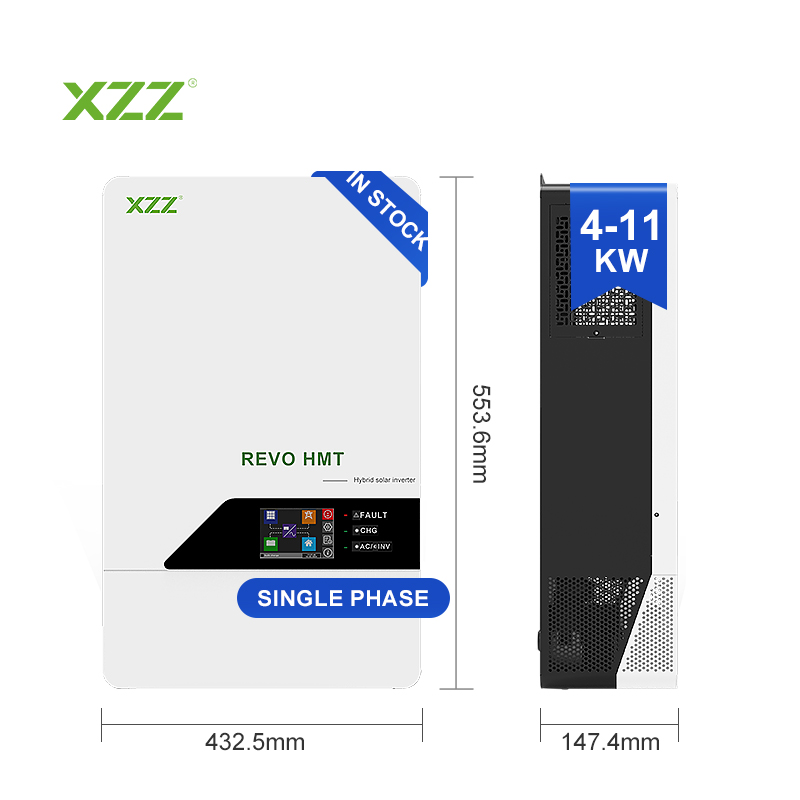

Dimensions DxWxH(mm)	315315516
Net Weight(KG)	9	10.5
DISPLAY AND COMMUNICATION
Display	Touch screen
Interface	Standard:RS232,CAN&RS485;Optional:WiFi,Bluetooth,CT
Safety standard	EN/IEC 62109-1,EN/IEC 62109-2

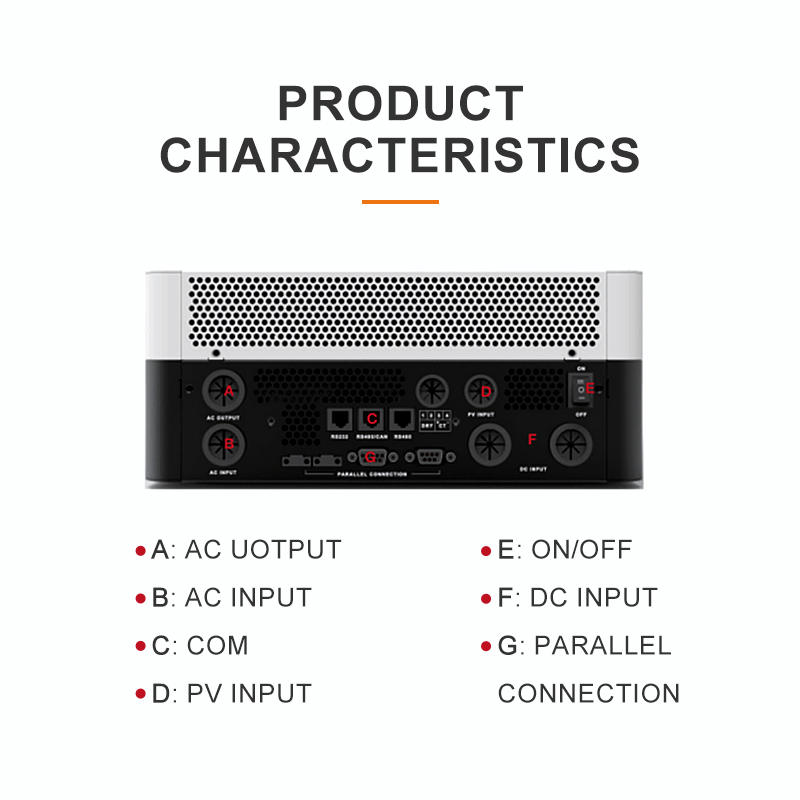

Product Display

Why Choose Us

photobank (19) photobank (21) photobank (20)

Contact Us

photobank (22)

FAQ

1.Q:How long is the delivery time of your products?

A:We can ship in 3 days if ship from oversea warehouse.

2.Q:What kind of certificates your products have?

A:Our products have acquired UN38.3,CE,FCC,UL and PSE certificates, which are able to satisfy most country's importing requirements.

3.Q:Can you ship your products by sea or by air ?

A:We have long-term cooperated forwarders who are professional at battery shipment.

4.Q:Can I customize products?

A: Let me know the specific customization requirements and I will get back to you as soon as possible.

5.Q:How do you provide after-sales service?

A:We have overseas branches can provide repair and replacement.

6.Q:Can I get a sample?

A:Yes, please leave your contact information and our sales manager will contact you soon.

7.Q:How can we guarantee quality?

A:Always a pre-production sample before mass production;Always final Inspection before shipment.

8.Q:What can you buy from us?

A:Portable power station, Solar energy storage system,EV Charging station,car jumper starter and solar panel.

9.Q:Why should you buy from us not from other suppliers?

A:Fast delivery,Safe packaging；Personal service,customized solutions；Competitive price and small MOQ.

10.Q:What services can we provide?

A:Accepted Delivery Terms: FOB;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
